The 4 x 14 is perfect for the winch island cubbies.

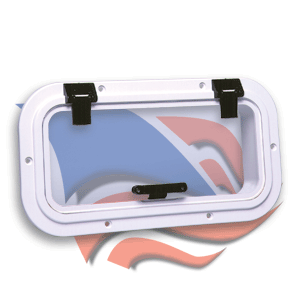

Beckson's modern storage hatch designed for multiple applications. This versatile hatch can be used for a glove compartment, engine control cover, fire extinguisher storage and many other uses, any vertical application. Incorporated into the design are some of these most sought after features:
|
- Modern "complete swing" hinges permit the cover to open a complete 180
degrees! - Rugged "SLIP-CLIP" snubbing latch holds the cover firmly closed. - Low profile exterior frame and cover reduces bulkhead clutter and clothing snags. - Open center cover handle provides an easy finger grip to open and close the cover. - Frame is designed to reduce distortion during installation insuring a tight closure. - Standard hatch spigot depth is 2" (5.1 cm); can easily be cut thinner walls. -Can be fitted with lock supplied with two keys. |
| Model No | Color | Hole Cut | Outside Frame |
| PH410MBB-20 | Black body, black cover | 4-1/2 x10-1/2" (11.4 x 26.7 cm) |
6-3/4 x 12-3/4" (17.1 x 32.4 cm) |
| PH410MWC-20 | White body, clear cover | 4-1/2 x10-1/2" (11.4 x 26.7 cm) |
6-3/4 x 12-3/4" (17.1 x 32.4 cm) |
| PH512MBB-20 | Black body, black cover | 5-1/2 x 1-1/2" (14.0 x 31.8 cm) |
7-3/4 x 14-5/8" (19.7 x 37.1 cm) |
| PH512MWC-20 | White body, clear cover | 5-1/2 x 1-1/2" (14.0 x 31.8 cm |
7-3/4 x 14-5/8" (19.7 x 37.1 cm) |
| PH414MBB-20 | Black body, black cover | 4-1/2 x 14-1/2" (11.4 x 36.8 cm) |
6-3/4 x 16-3/4" (17.1 x 42.5 cm) |
| PH414MWC-20 | White body, clear cover | 4-1/2 x 14-1/2" (11.4 x 36.8 cm) |
6-3/4 x 16-3/4" (17.1 x 42.5 cm) |
| PH714MBB-20 | Black body, black cover | 7-1/2 x 14-1/2" (19.0 x 36.8 cm) |
9-3/4 x 16-3/4" (24.8 x 42.5 cm) |
| PH714MWC-20 | White body, clear cover | 7-1/2 x 14-1/2" (19.0 x 36.8 cm) |
9 -3/4 x 16-3/4" (24.8 x 42.5 cm) |
