True Measured Dimensions

Are you like me and have seen many differing beams for this boat? Ever wonder what her real draft is? Well I certainly have. So I measured her during this refit:



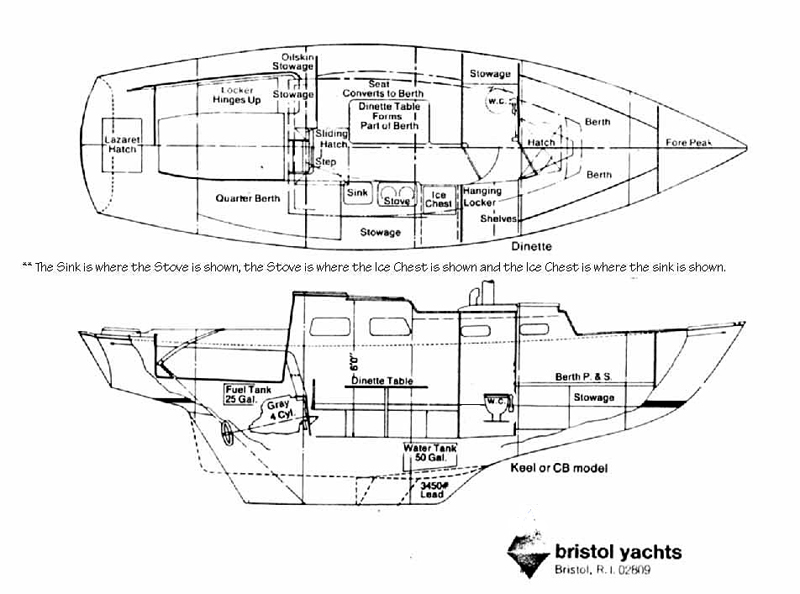

Dimensions

Aspect

Measurement

Length 29'-1"
Beam at widest position of hull (station gates) 9'-1"
Draft at deepest position (rudder shoe) 5'-3"
Length from back edge of mast to stern 17'-6"
Length from back edge of mast to back edge of cabin top 99"
Length from back edge of cabin top to stern 112"
Length from back edge of mast to forward edge of proposed mid-boom traveler 68"
Length on boom of forward mainsheet block (from back edge of mast) 60"
Length on boom of center mainsheet block (from back edge of mast) 68"
Length on boom of aft mainsheet block (from back edge of mast) 76"
Length on cabin top from back edge of mast to mainsheet turning block (from back edge of mast) 52"
Standard sail measurements

Boom Specifications*

Component

Size

Outside measurement 4.50" x 2.75"
Wall Thickness .105"
Weight/ft 1.5#
Moments of inertia: Ixx = 2.7", Iyy = 1.2"
Circumference 11-1/2"
Alloy 6063-T3
Sail slides 1/2" round slugs (A108. A118)
Length 157-1/2"
taken from RigRite's website:
http://www.rigrite.com/Spars/Kenyon_Spars/E-boom.html


Mast Specifications

Component

Size

Outside measurement 6.75 x 4.125
Wall Thickness .22
Length (to base of masthead) 34' 10-1/4"
Length to spreaders 17' 1"
Length to inner forestay clevis pin 26' 5-1/4"
